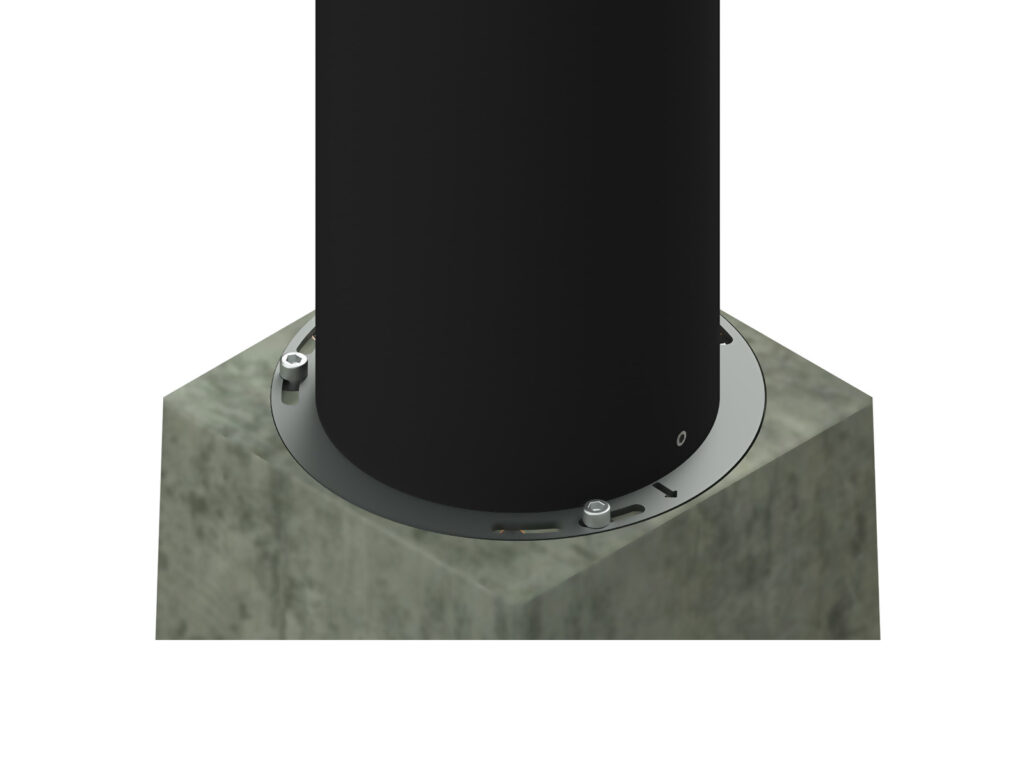

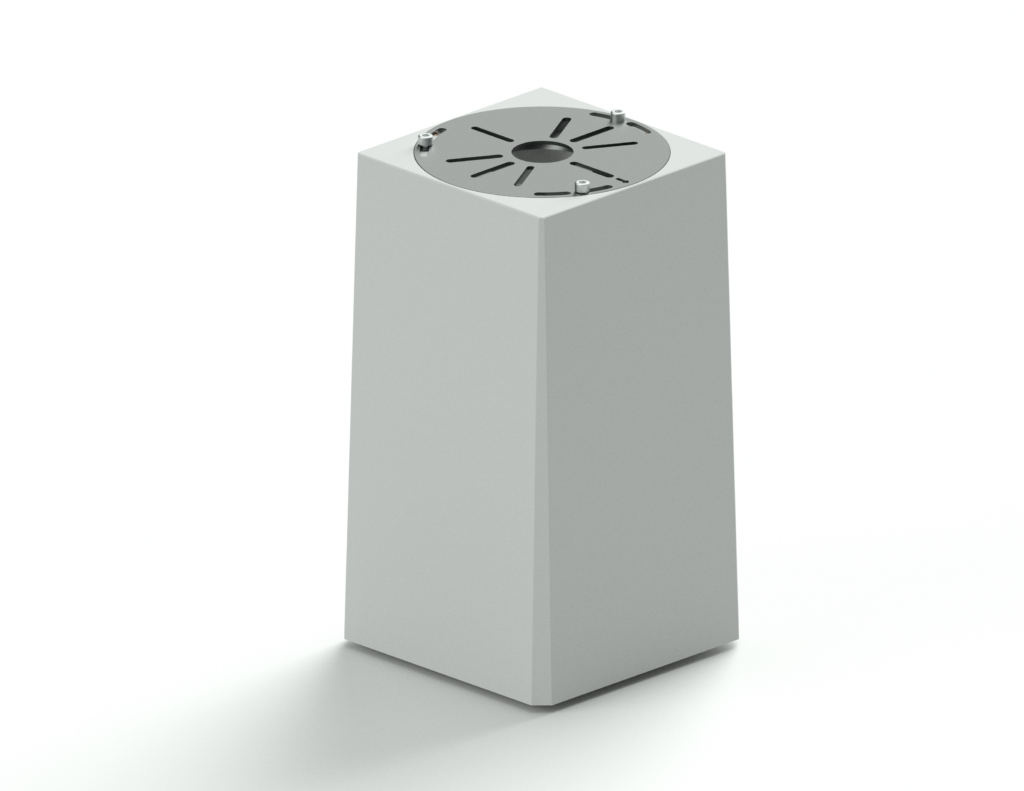

Bases for Landscape Lighting
Concrete bases ensure stable installation of landscape lighting without complex foundations.
Precise dimensions allow quick installation of posts while maintaining vertical alignment and secure ground fixation.

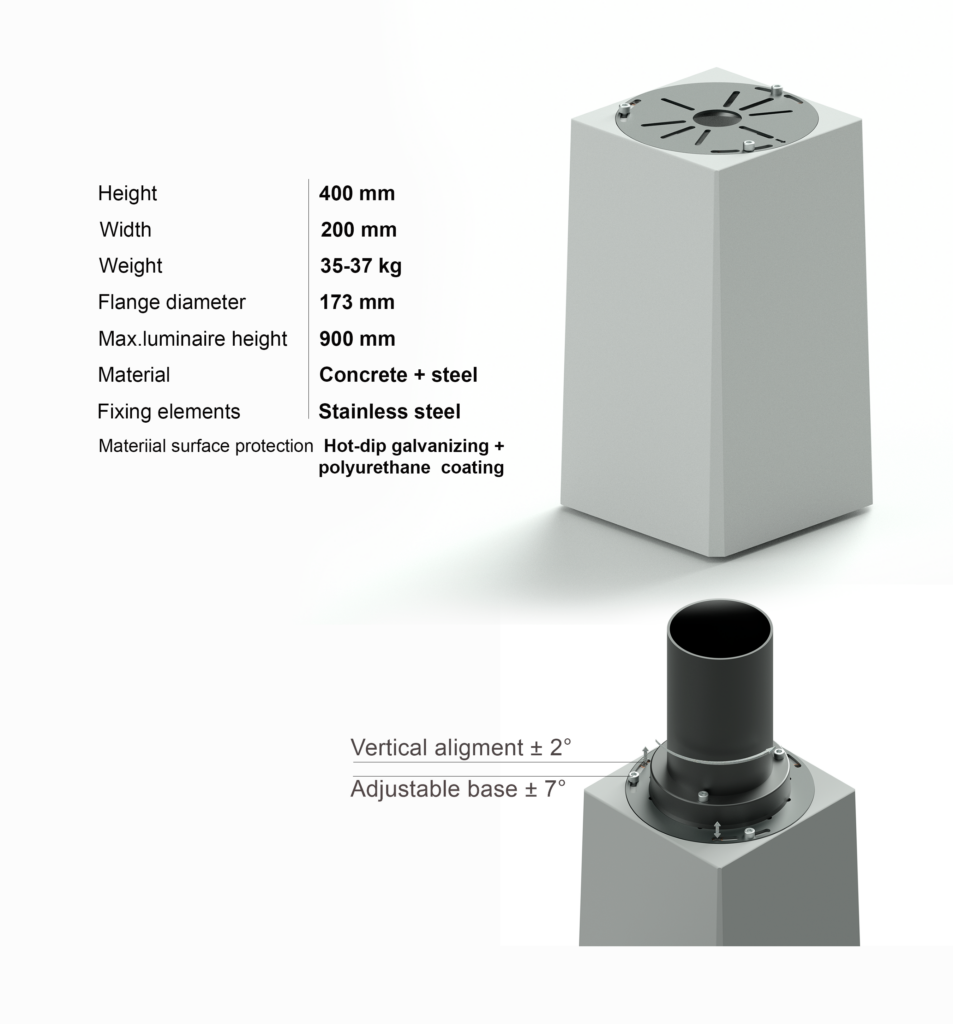

Technical Specifications
Well-Designed Construction and Installation.
The base construction has been developed taking into account real installation conditions and long-term use. Special attention has been given to stability, compatibility with different lighting fixtures, and simple, safe installation of electrical connections.
Solution

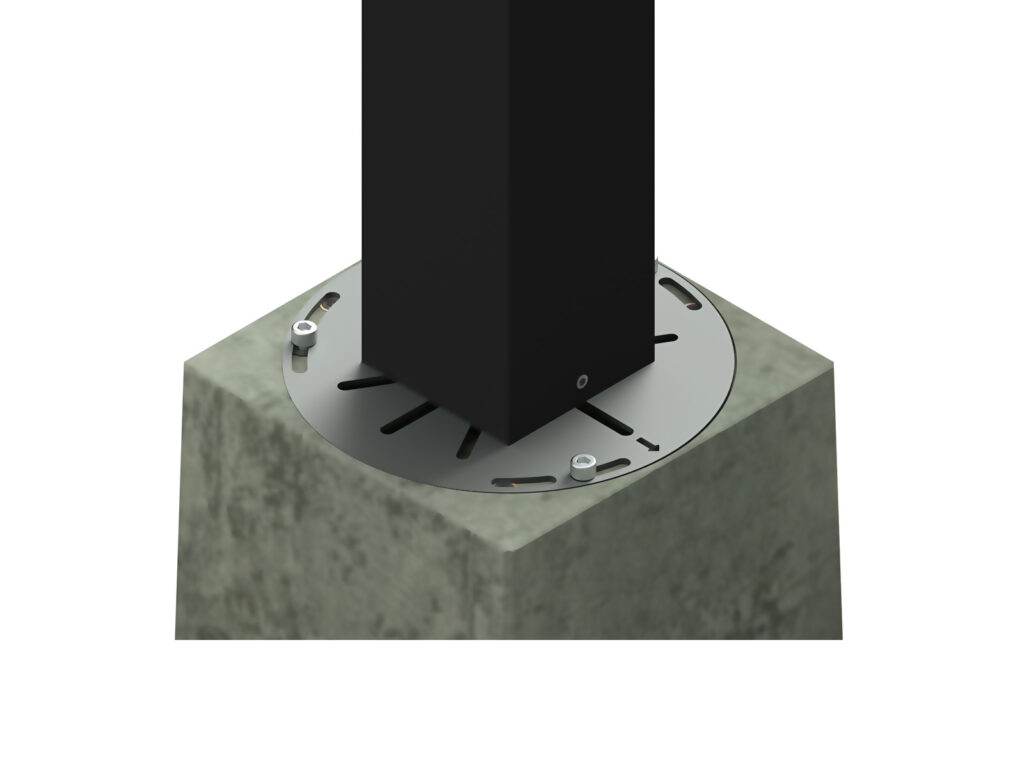

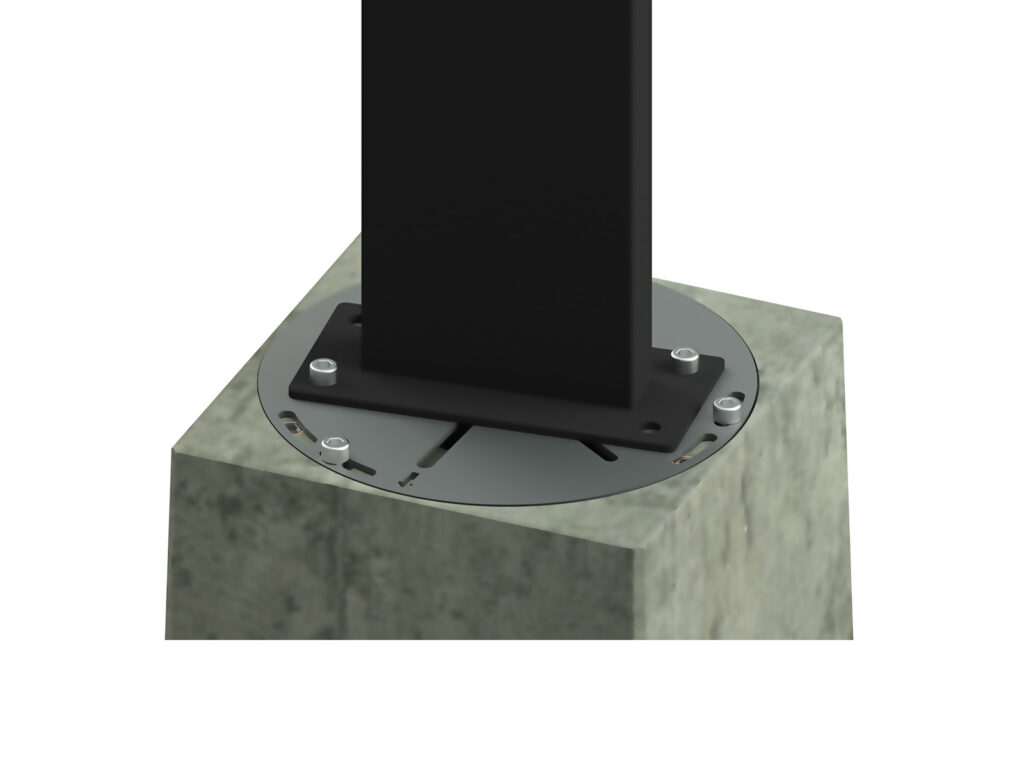

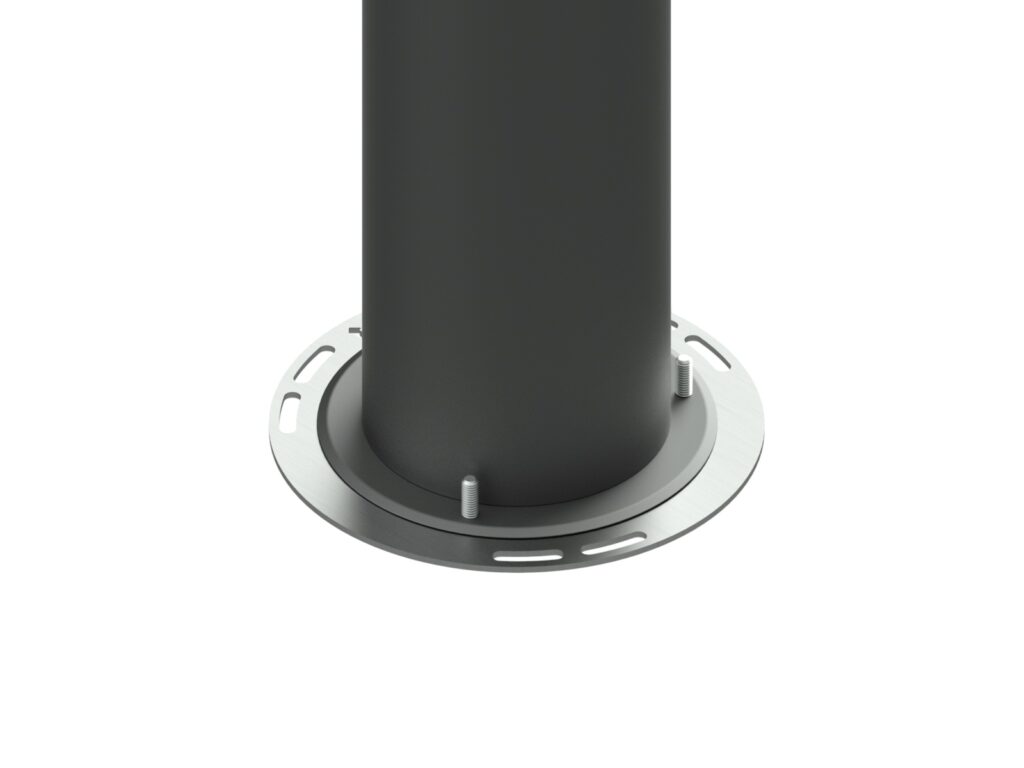

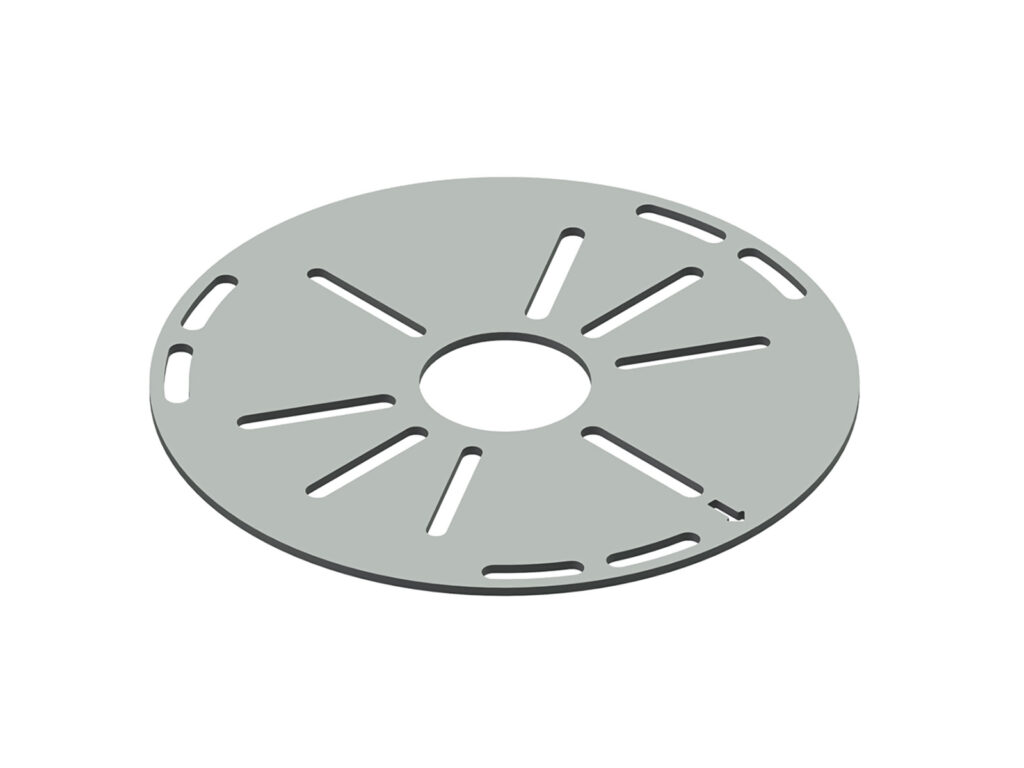

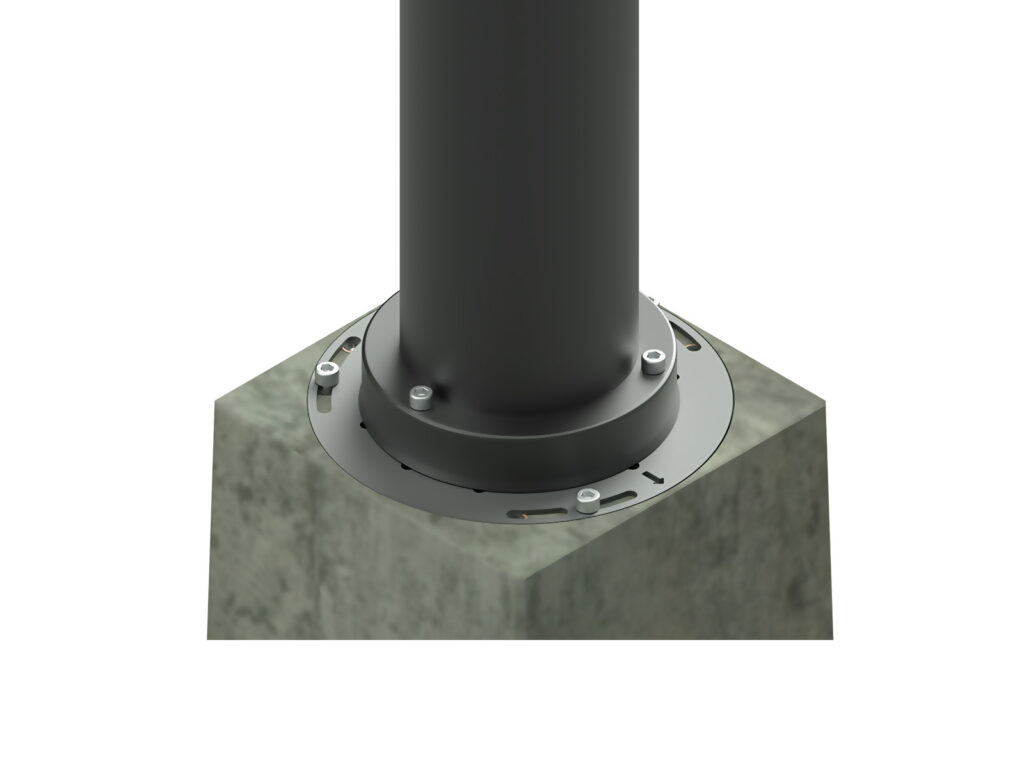

Universal Mounting Plate
Connection plate material: steel thickness 2.5 mm. Protection class C4 (cold galvanizing + polyurethane coating).

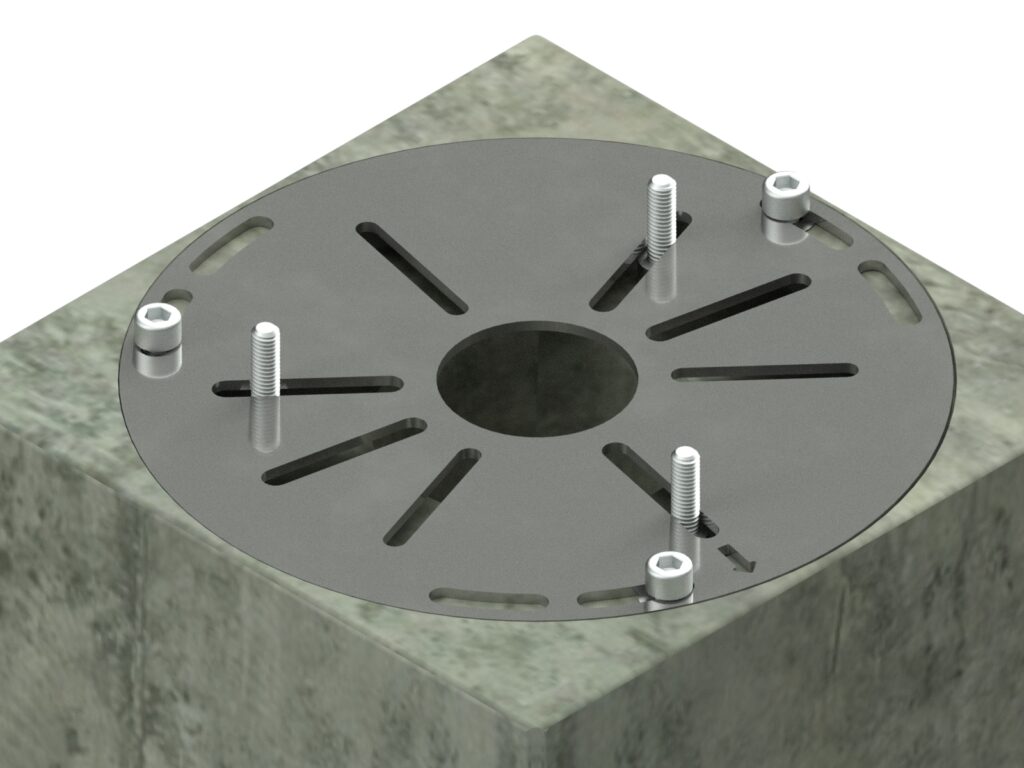

It’s possible to install the mounting bolts in advance, or to attach the light fixture first to the connection plate and then to the concrete base.
Adjustment in three planes:
With respect to the horizontal axes (X, Y): ± 2°
With respect to the vertical axis (Z): ± 7°
A convenient niche for moisture-resistant splicing of electrical cables. The product is equipped with two connection elements: 3M Scotchlok 314.
Internal cable duct/conduit for the electrical cable.
The electrical cable must be routed to the light fitting base in accordance with the requirements for outdoor lighting.
Compatibility with lighting fixtures

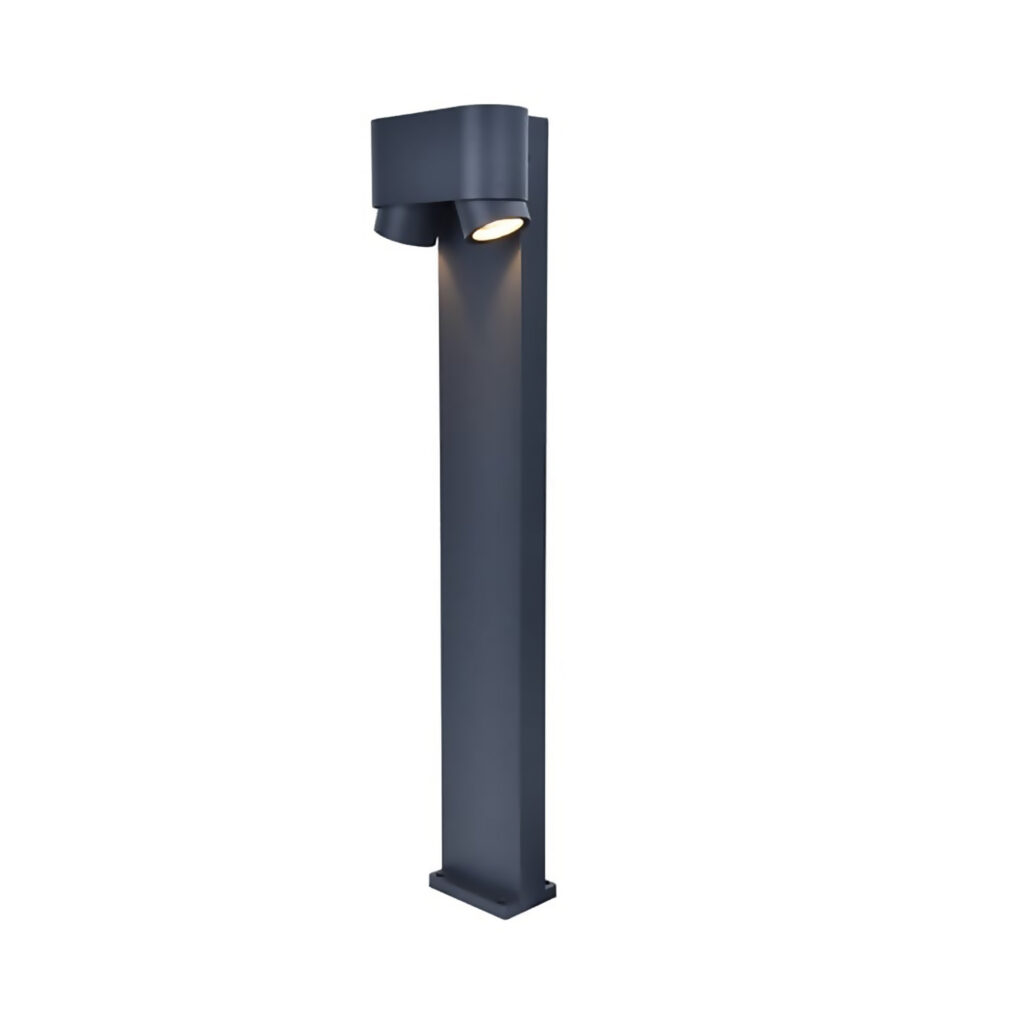

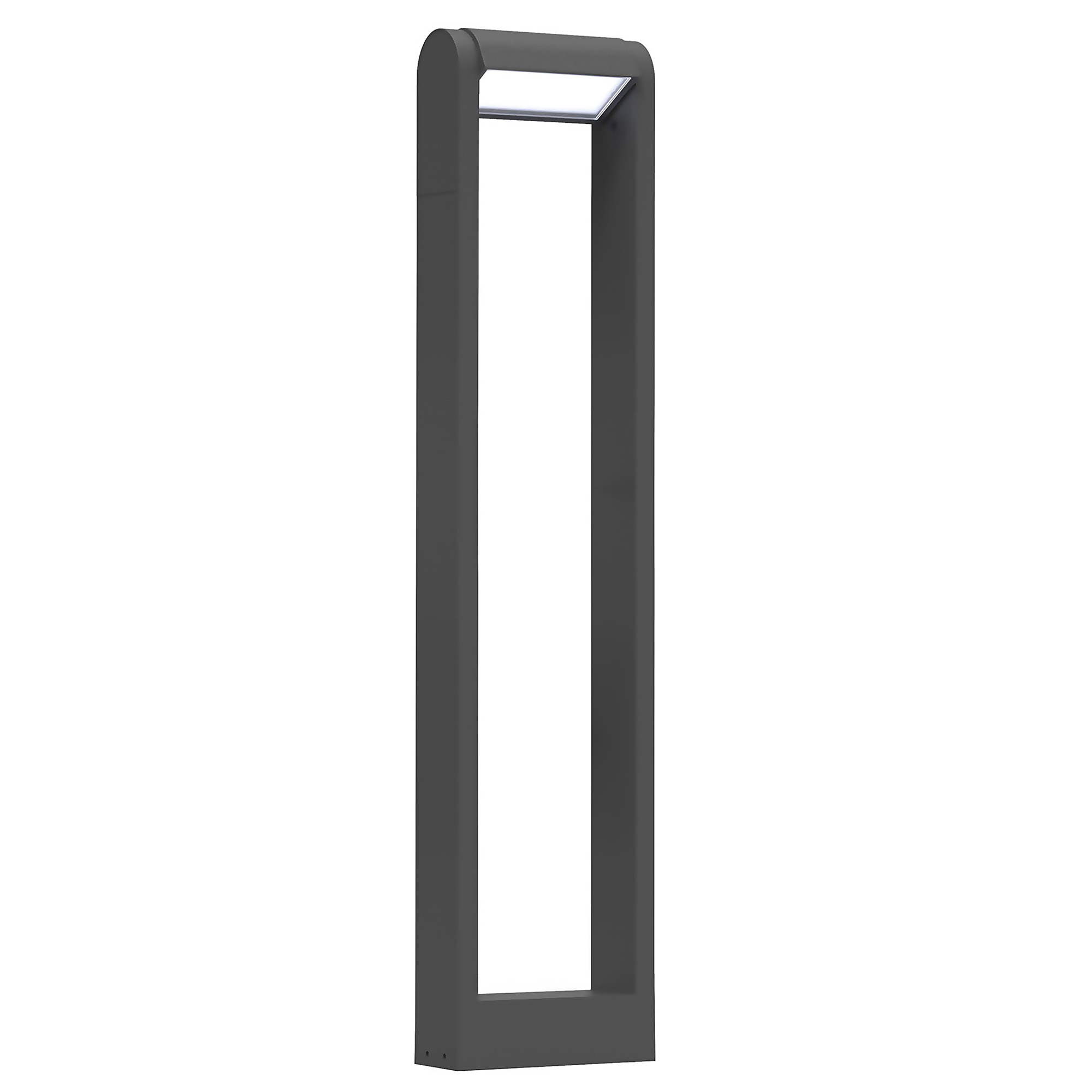

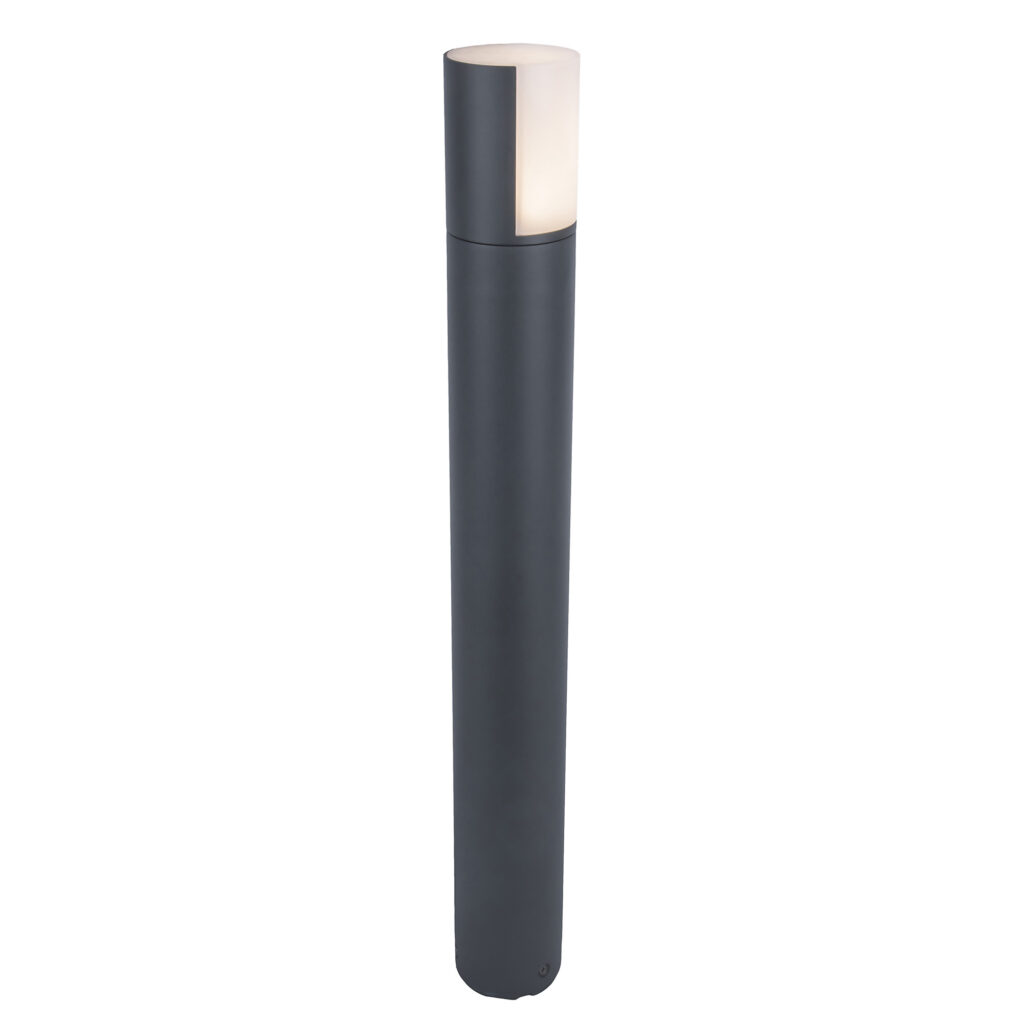

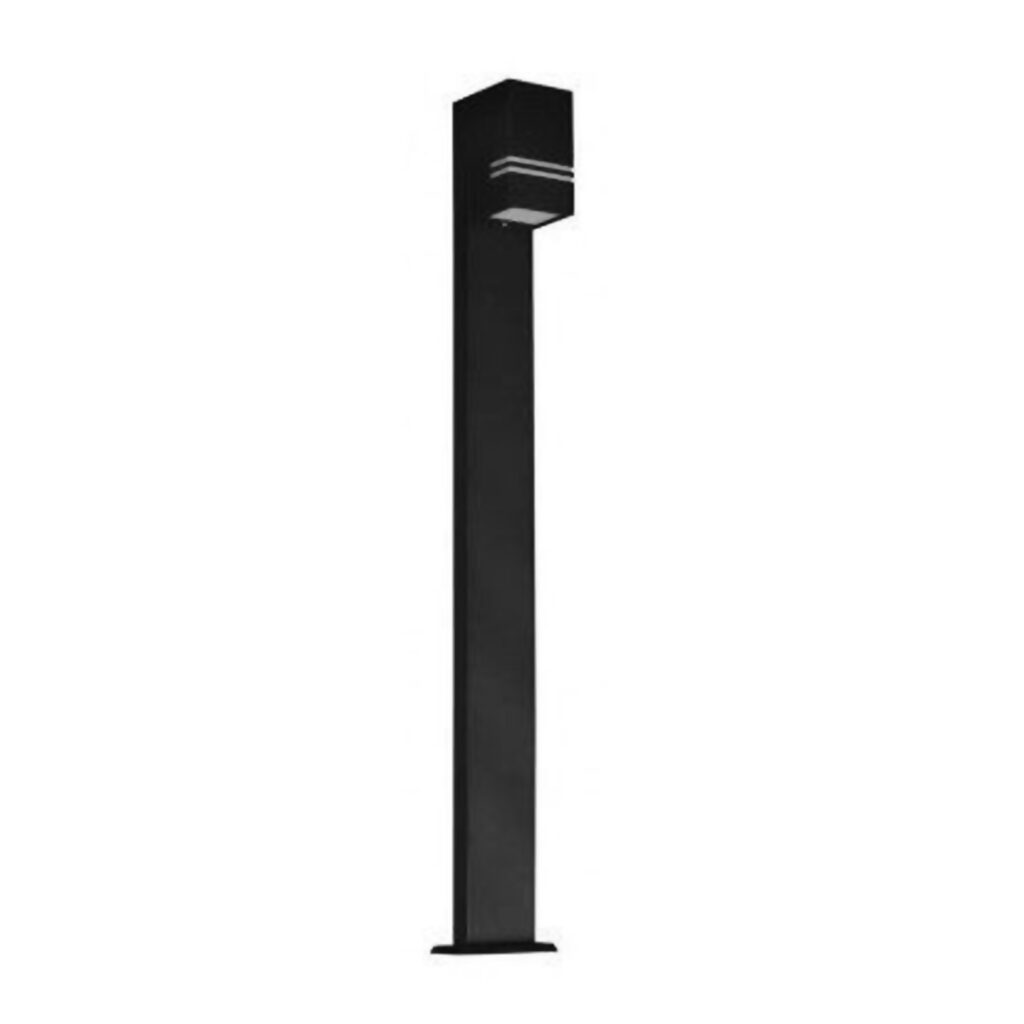

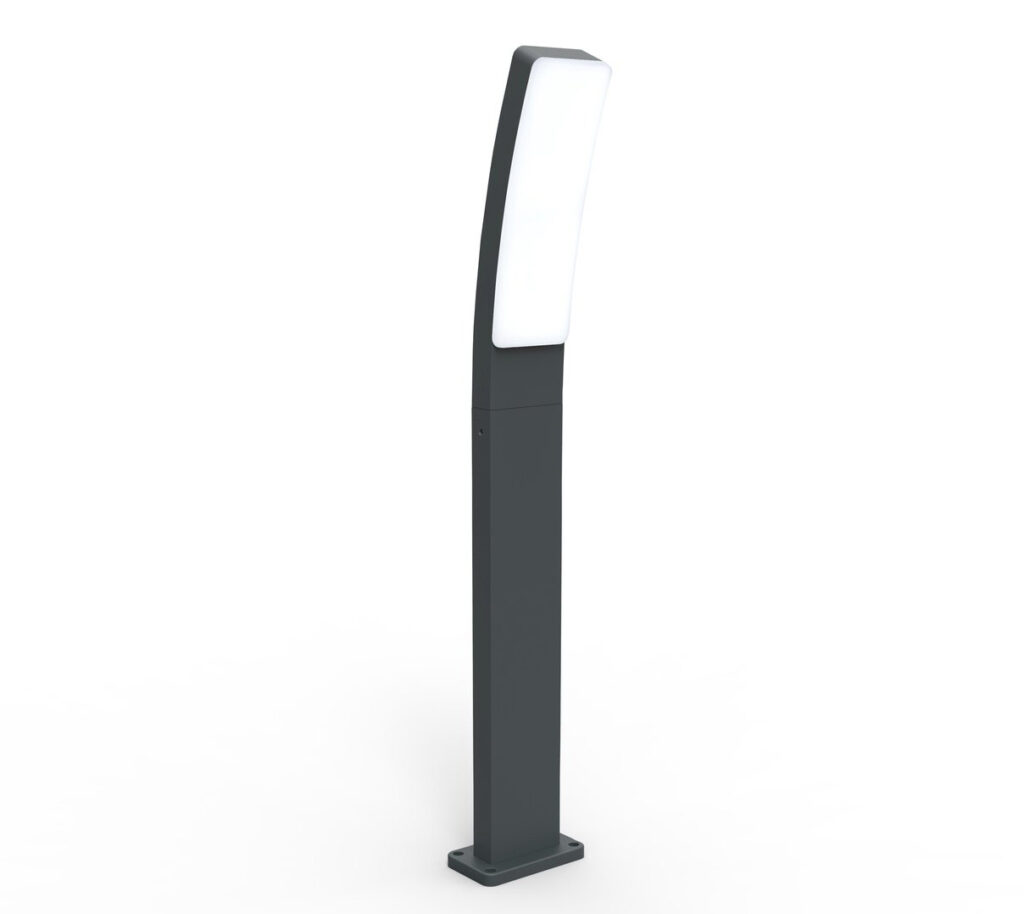

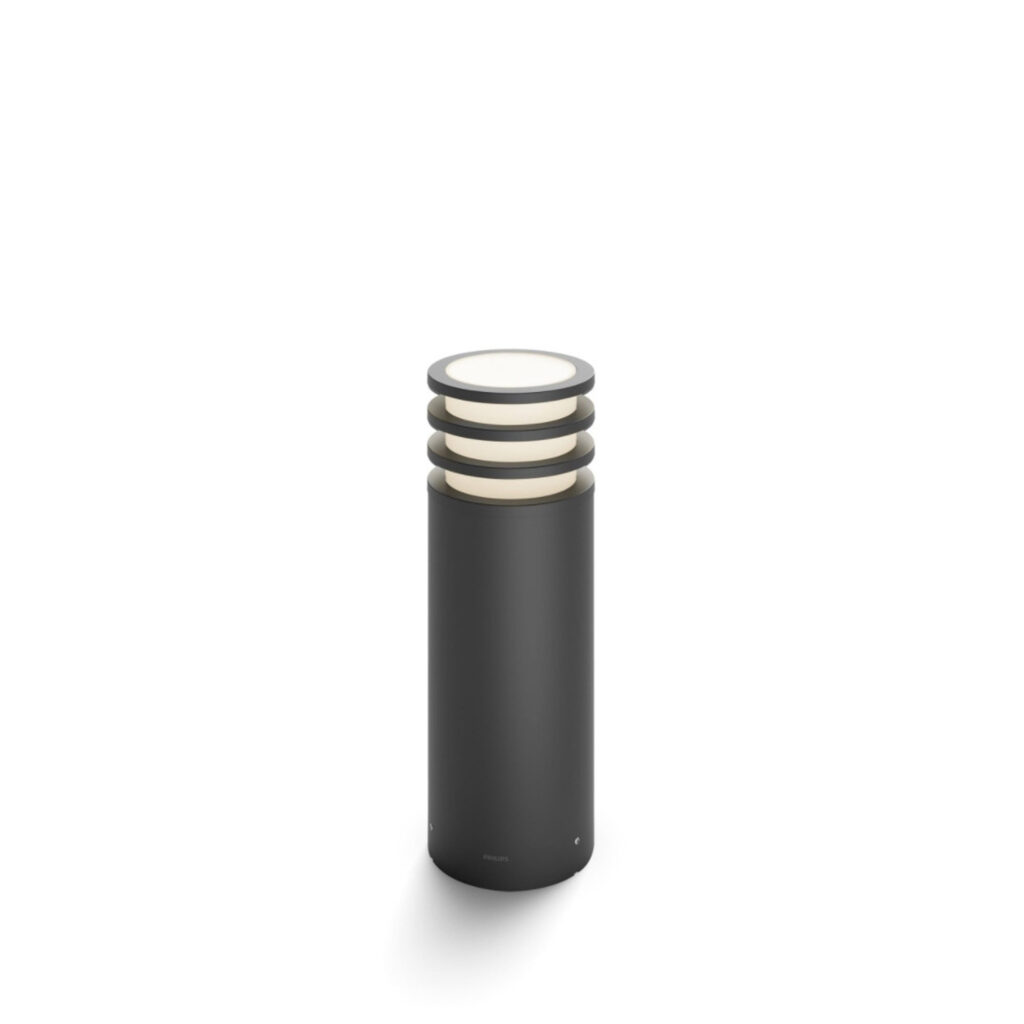

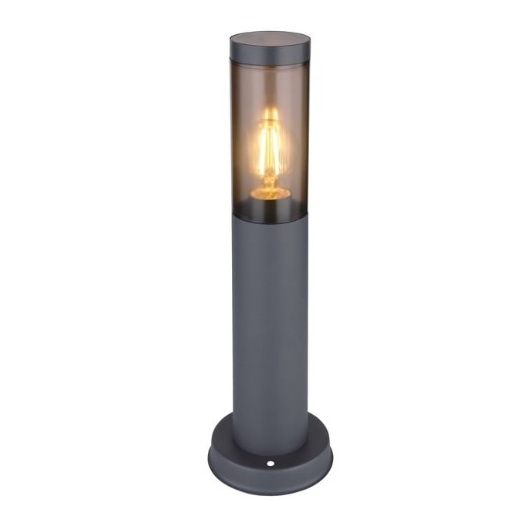

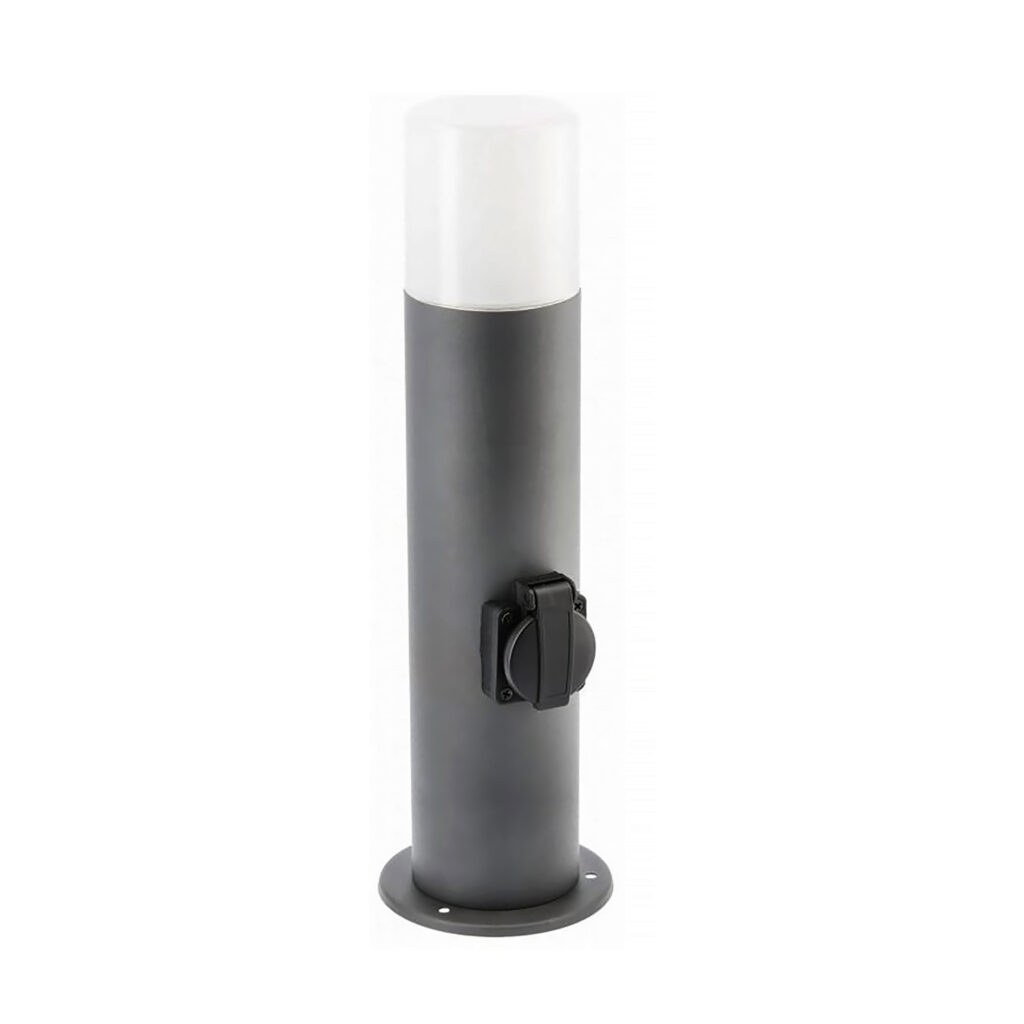

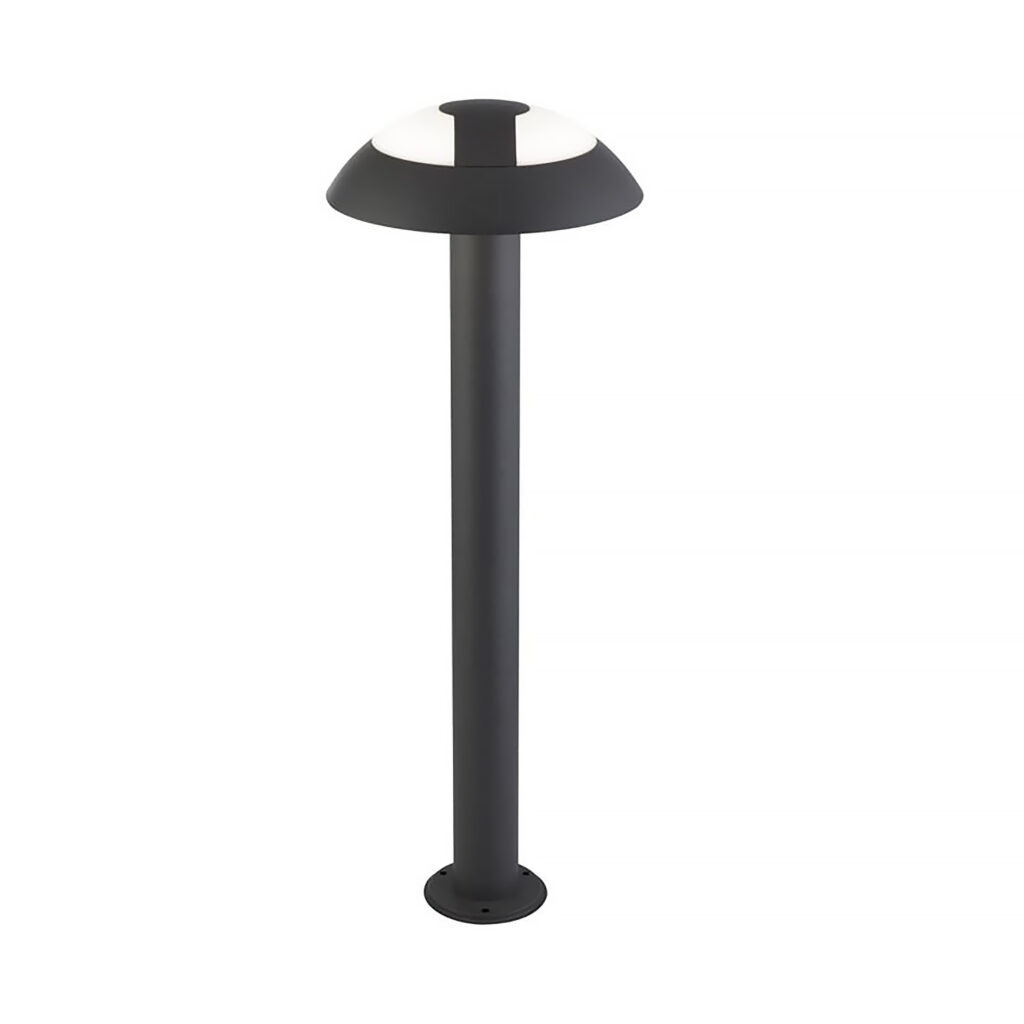

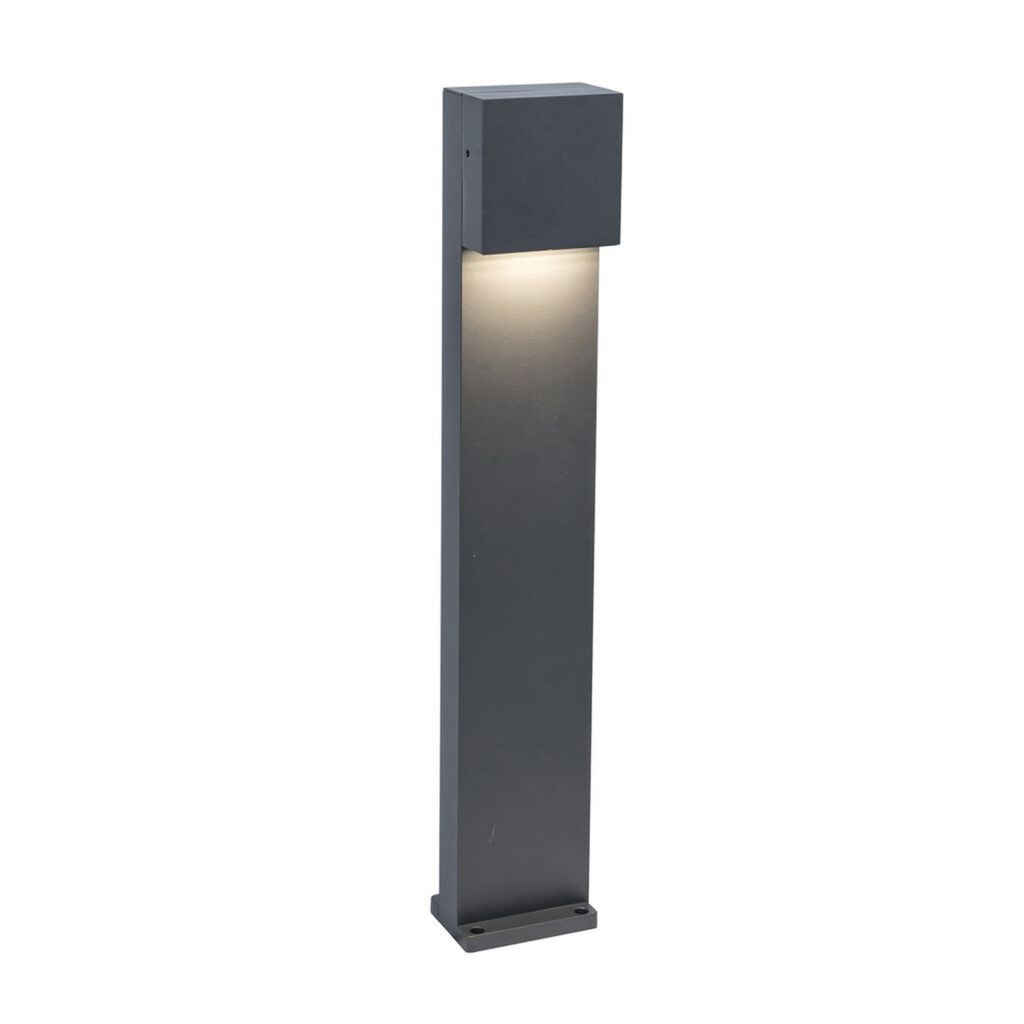

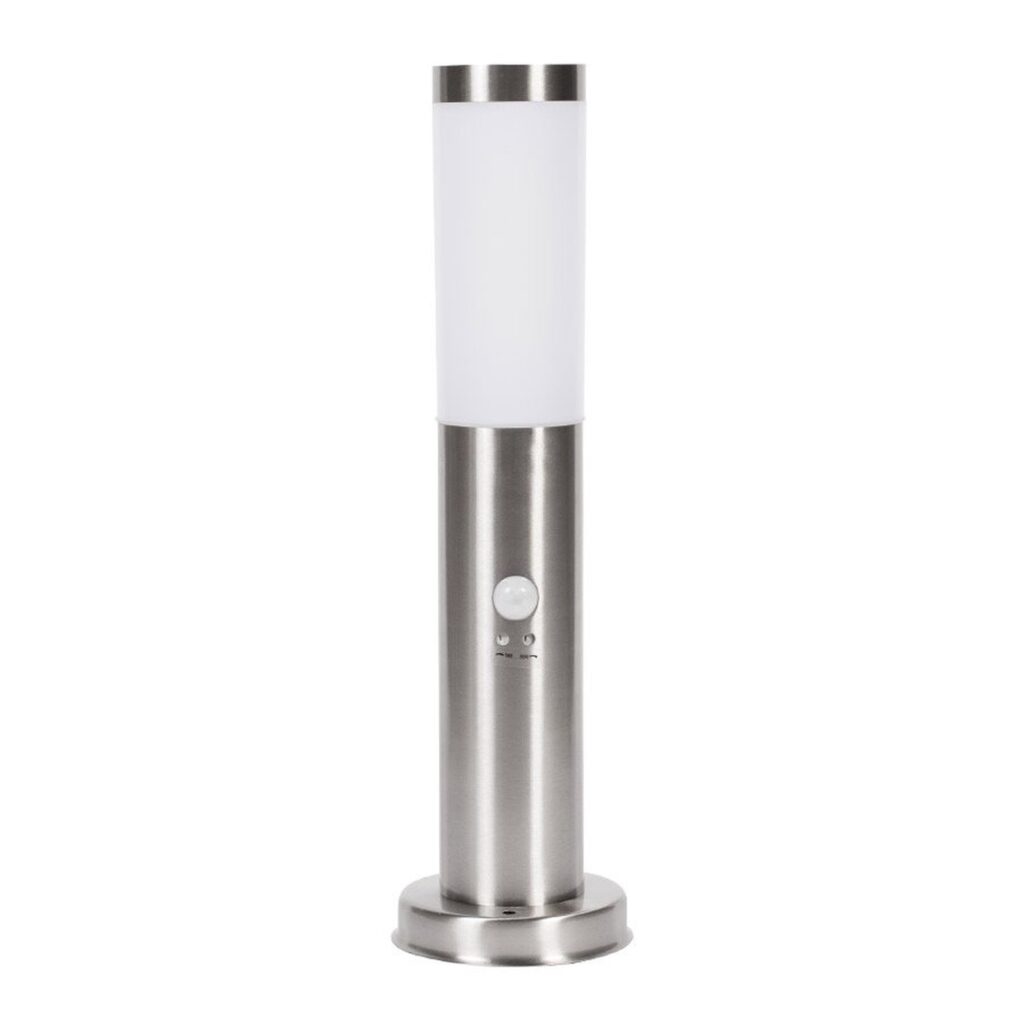

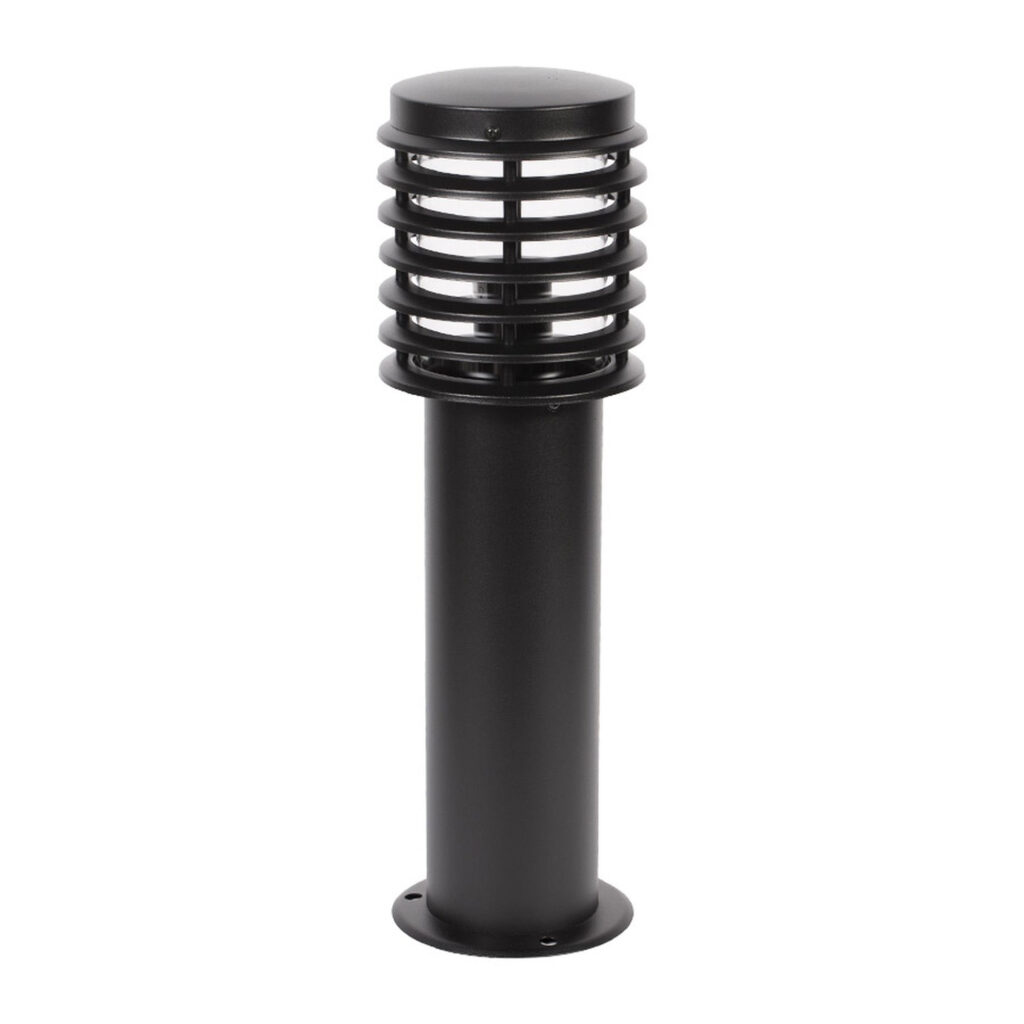

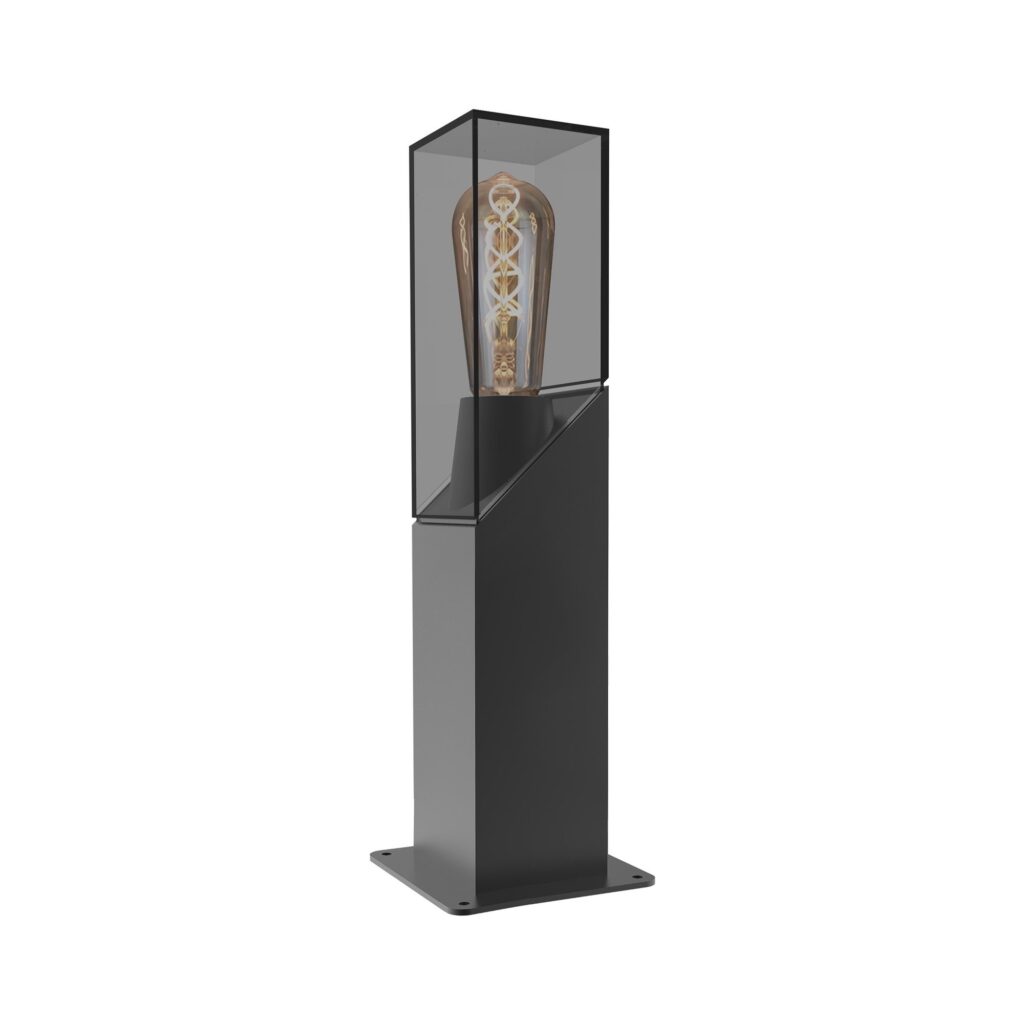

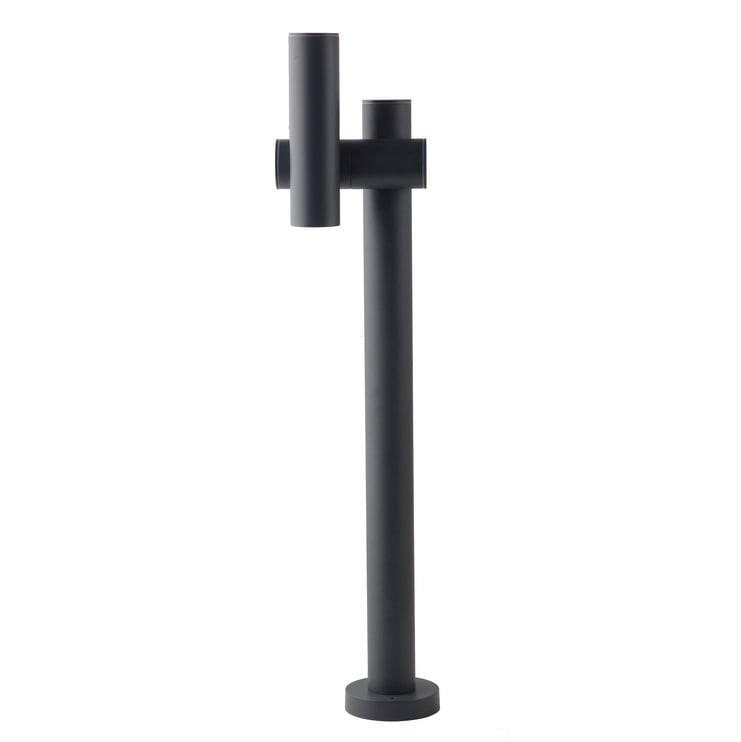

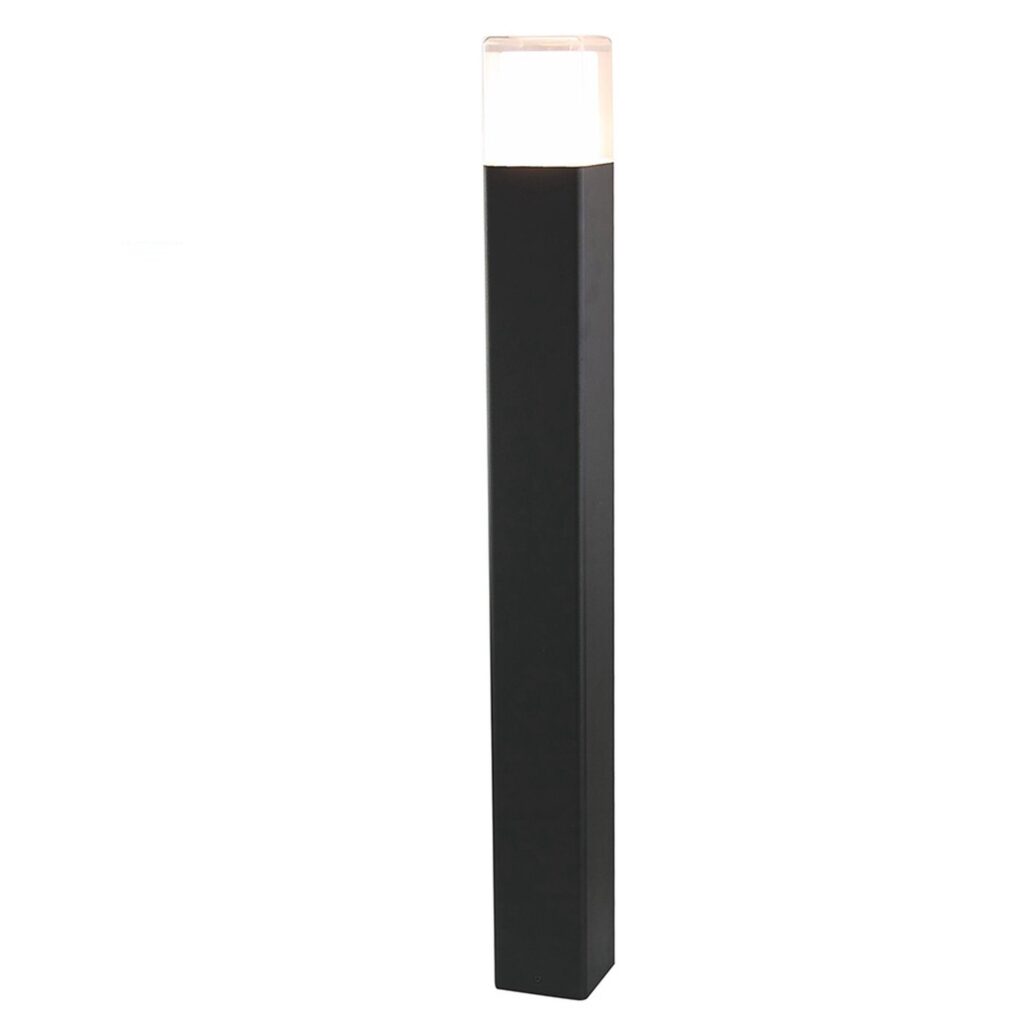

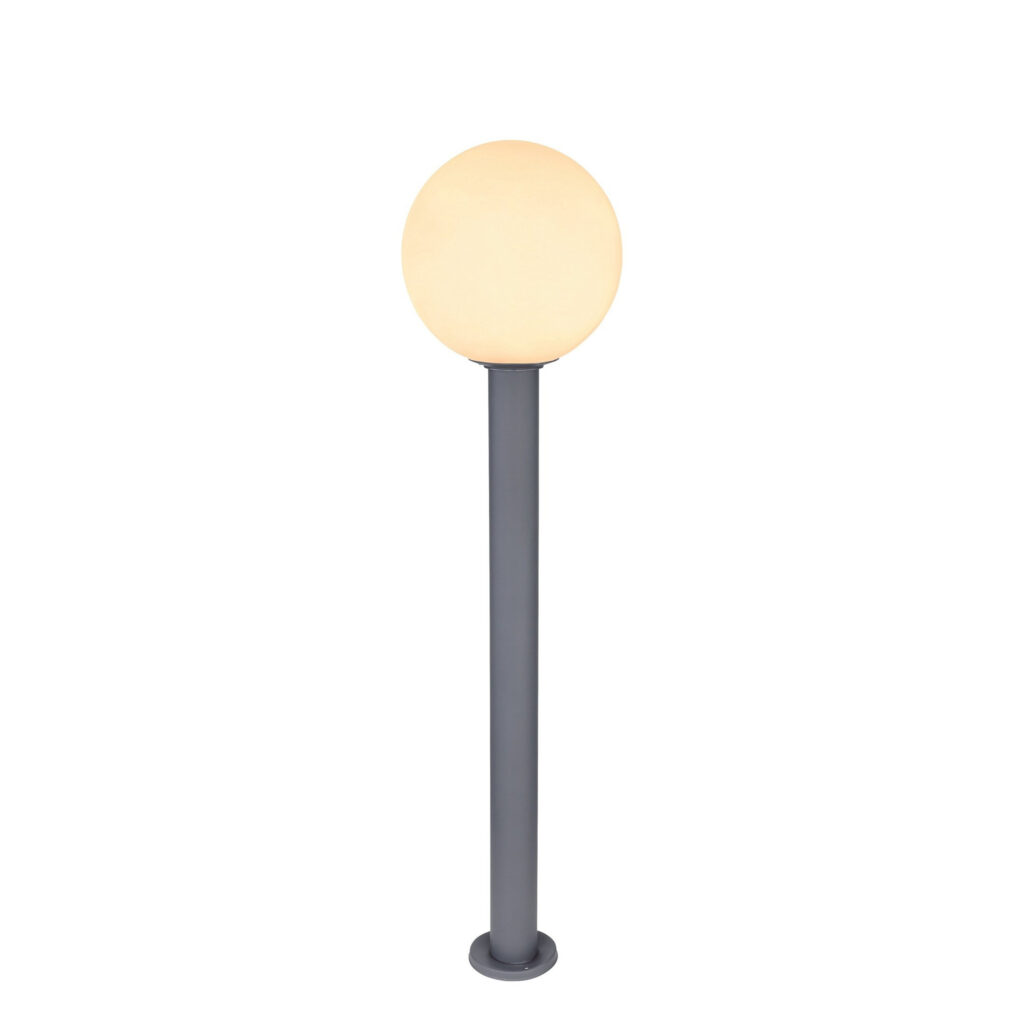

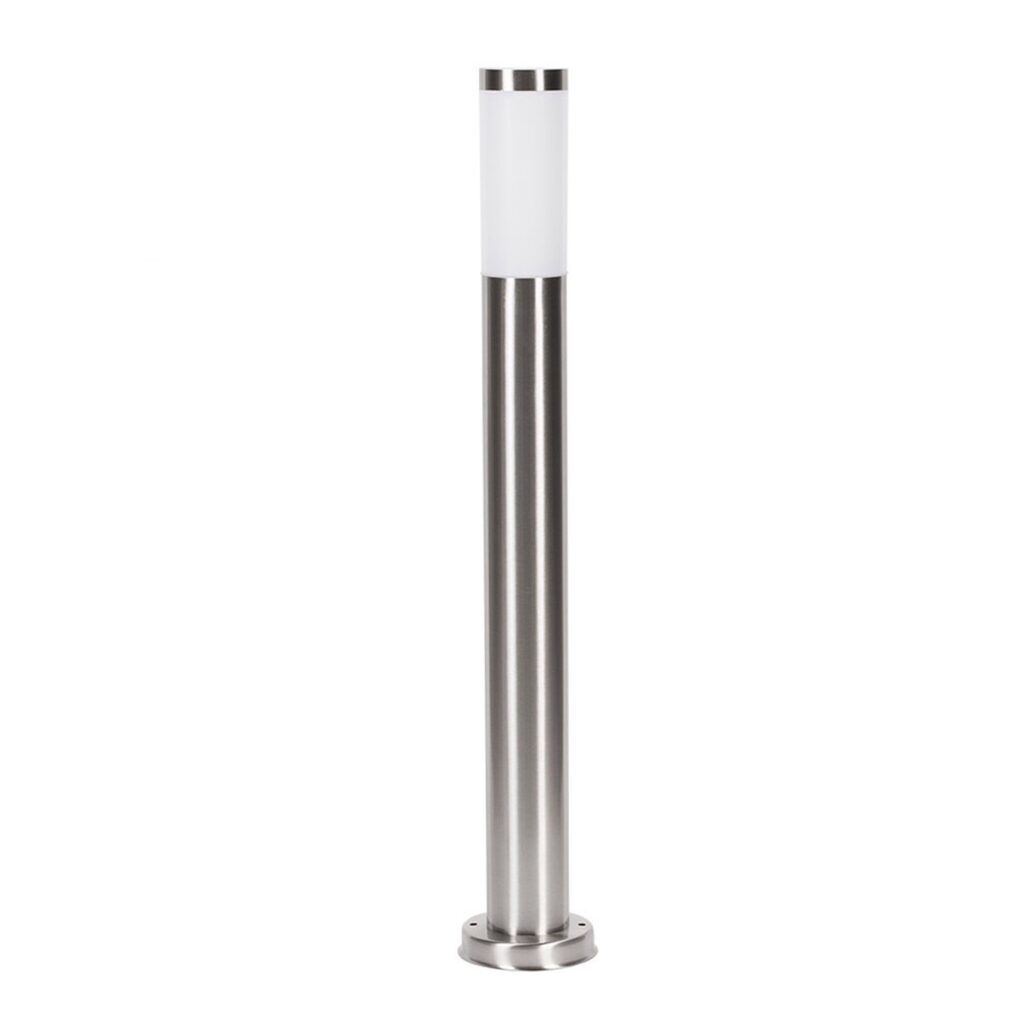

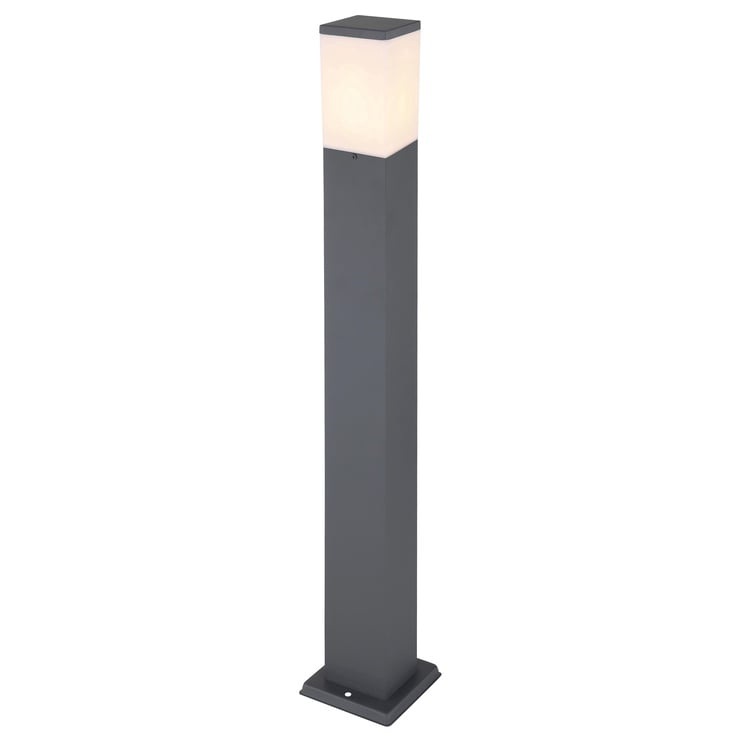

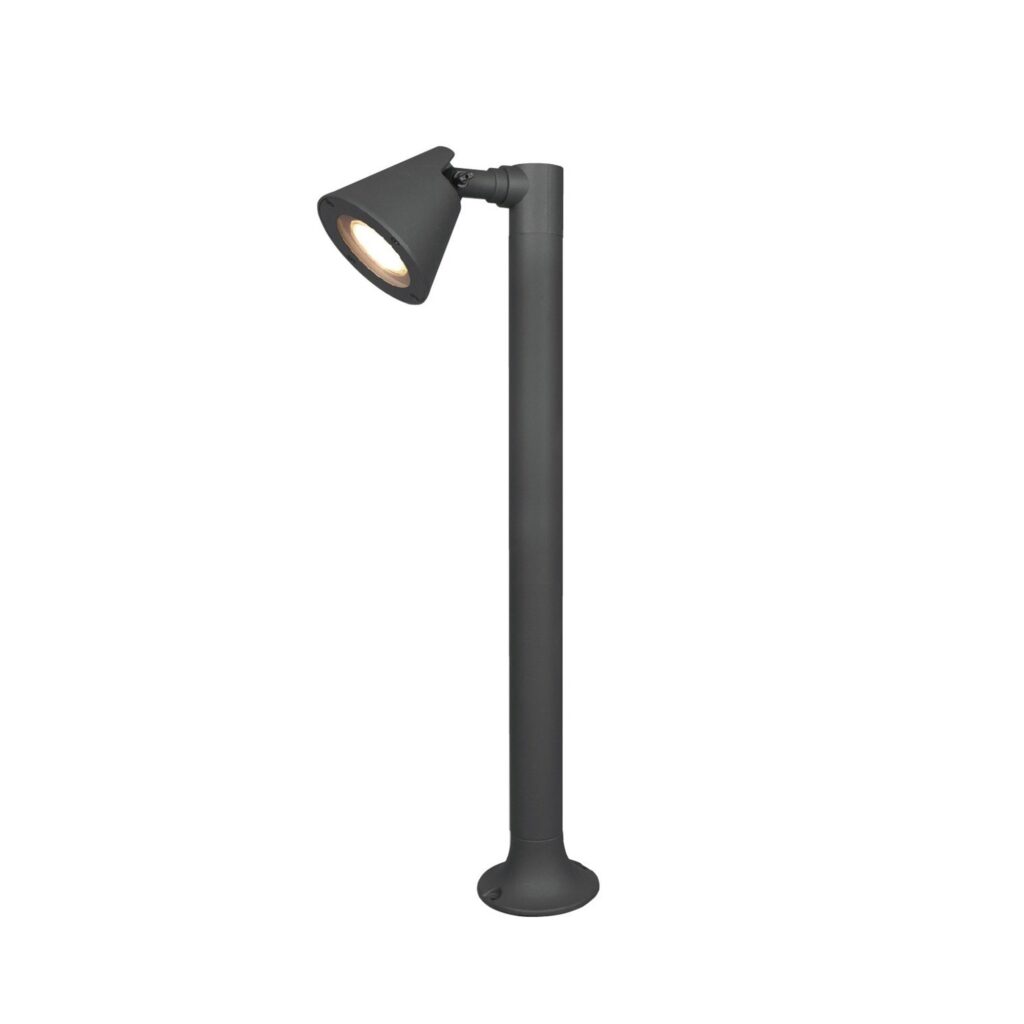

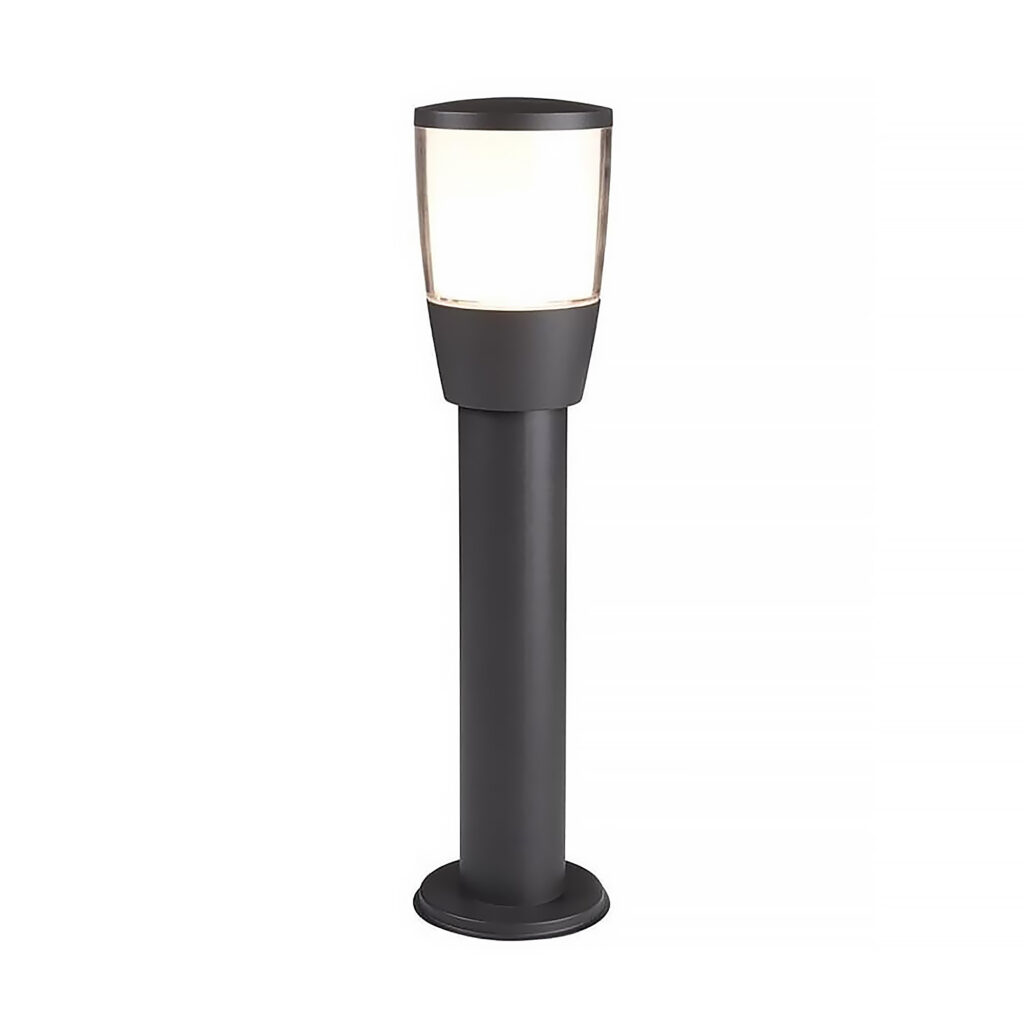

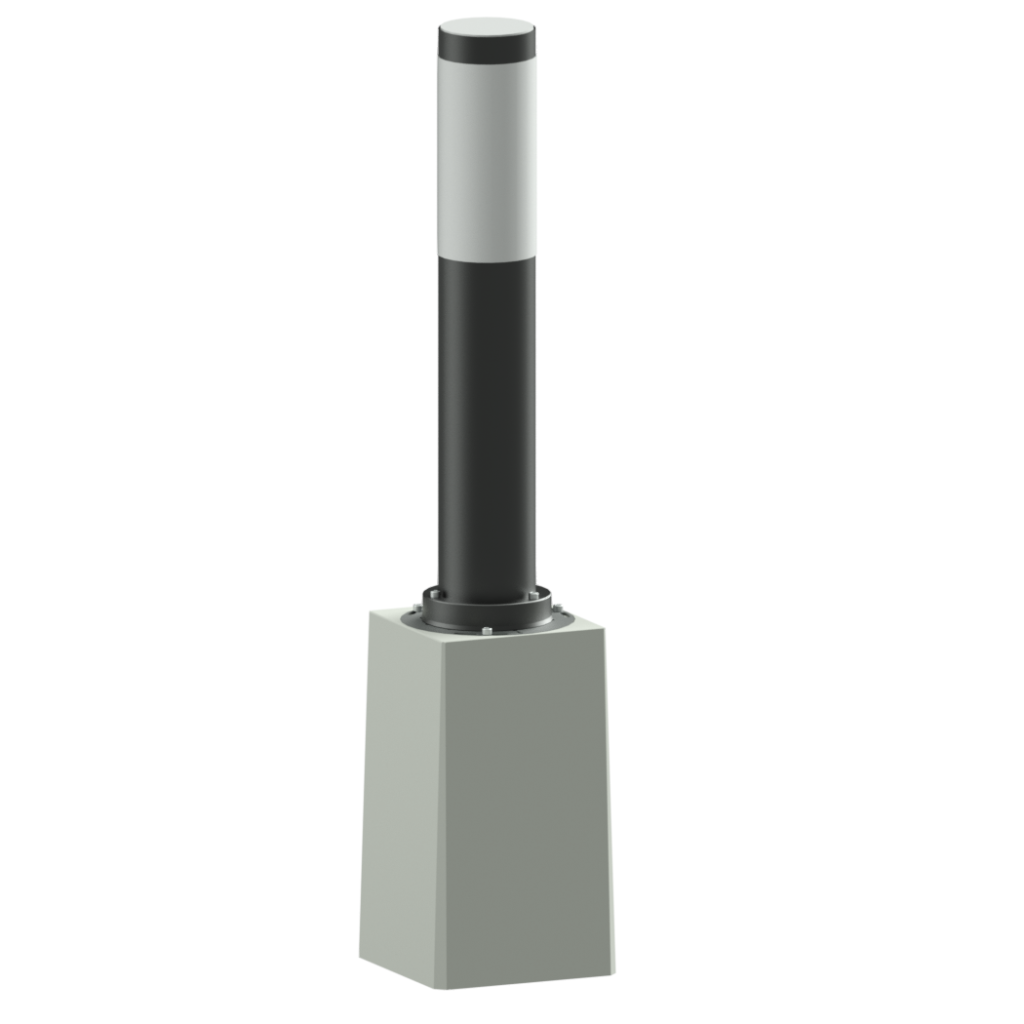

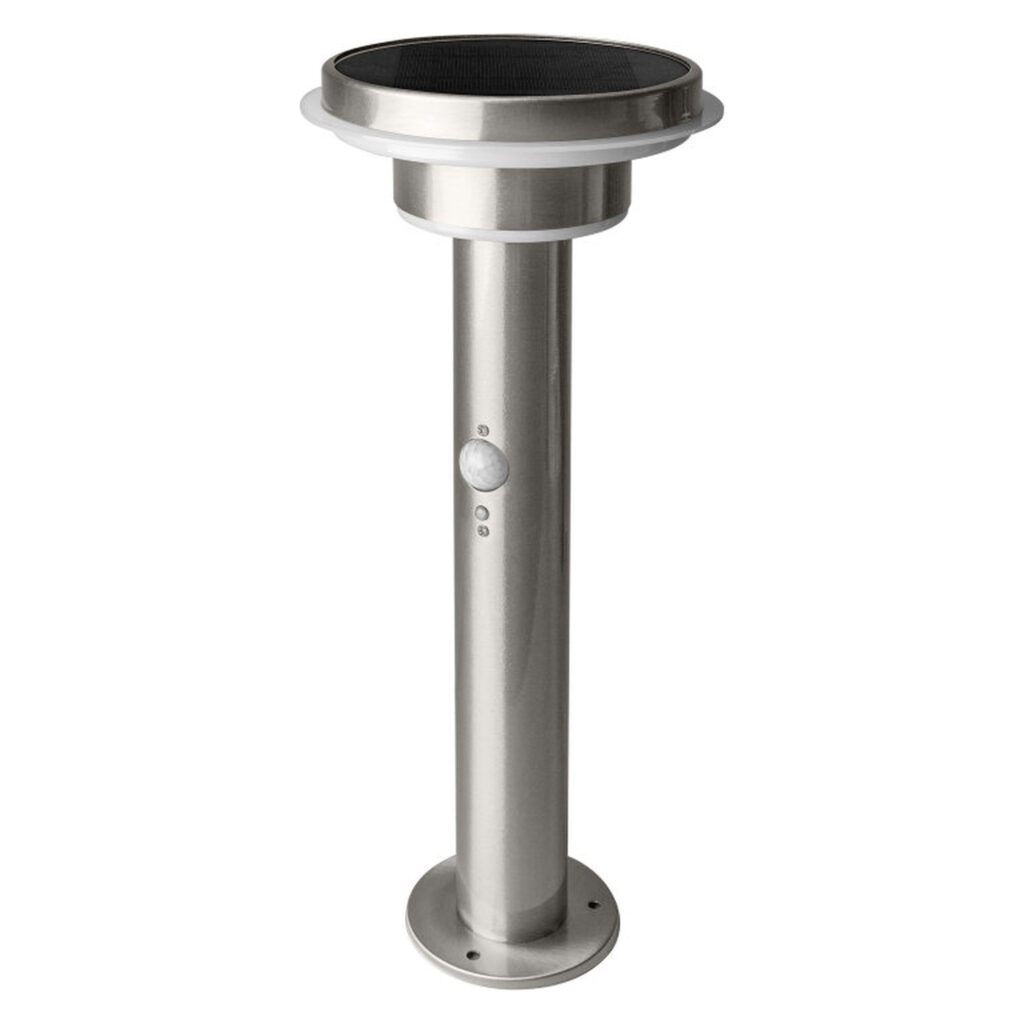

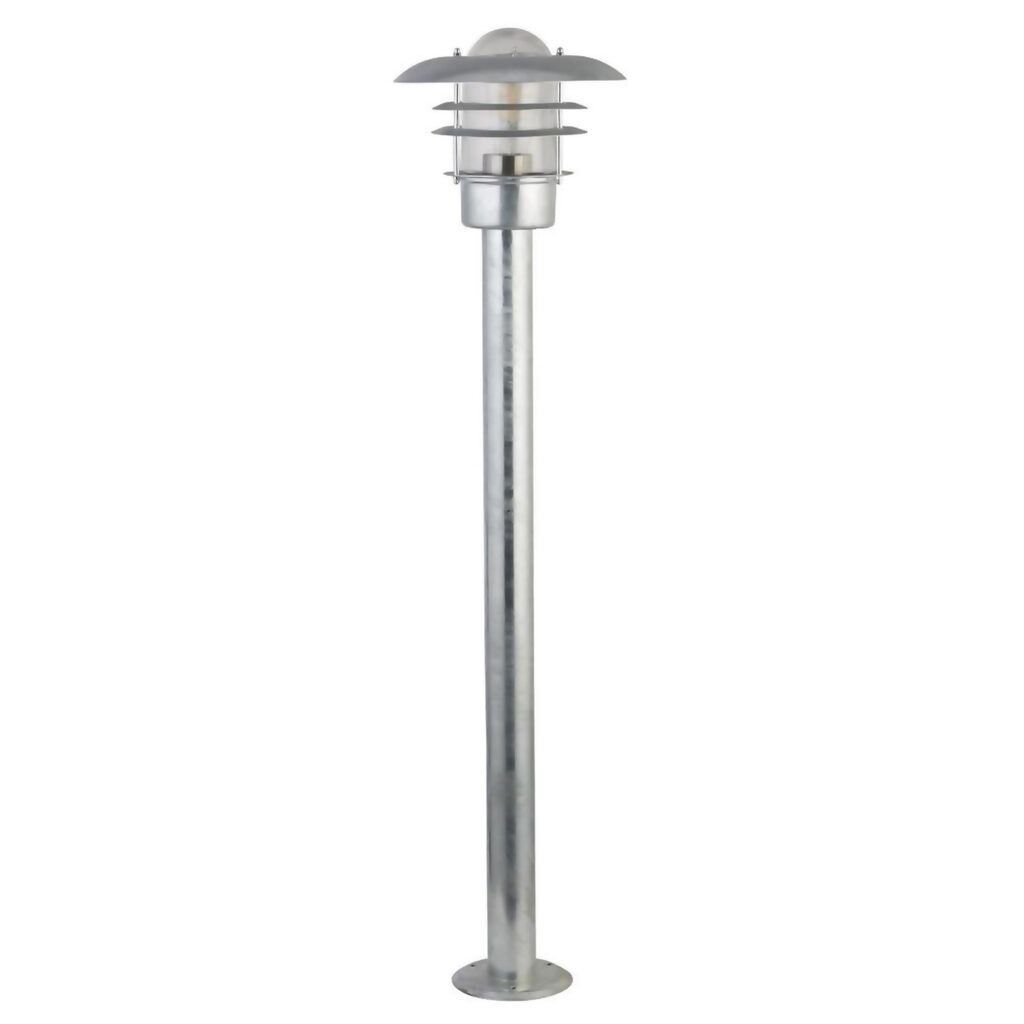

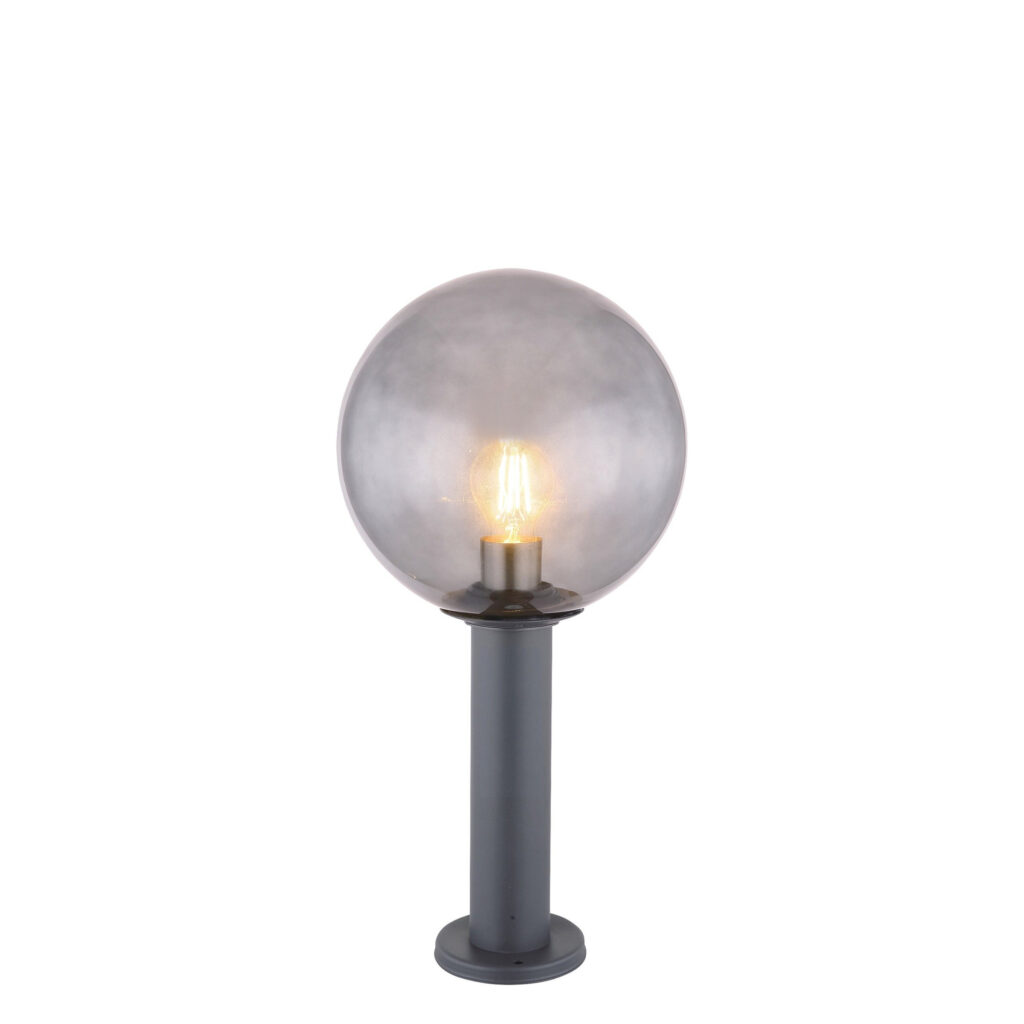

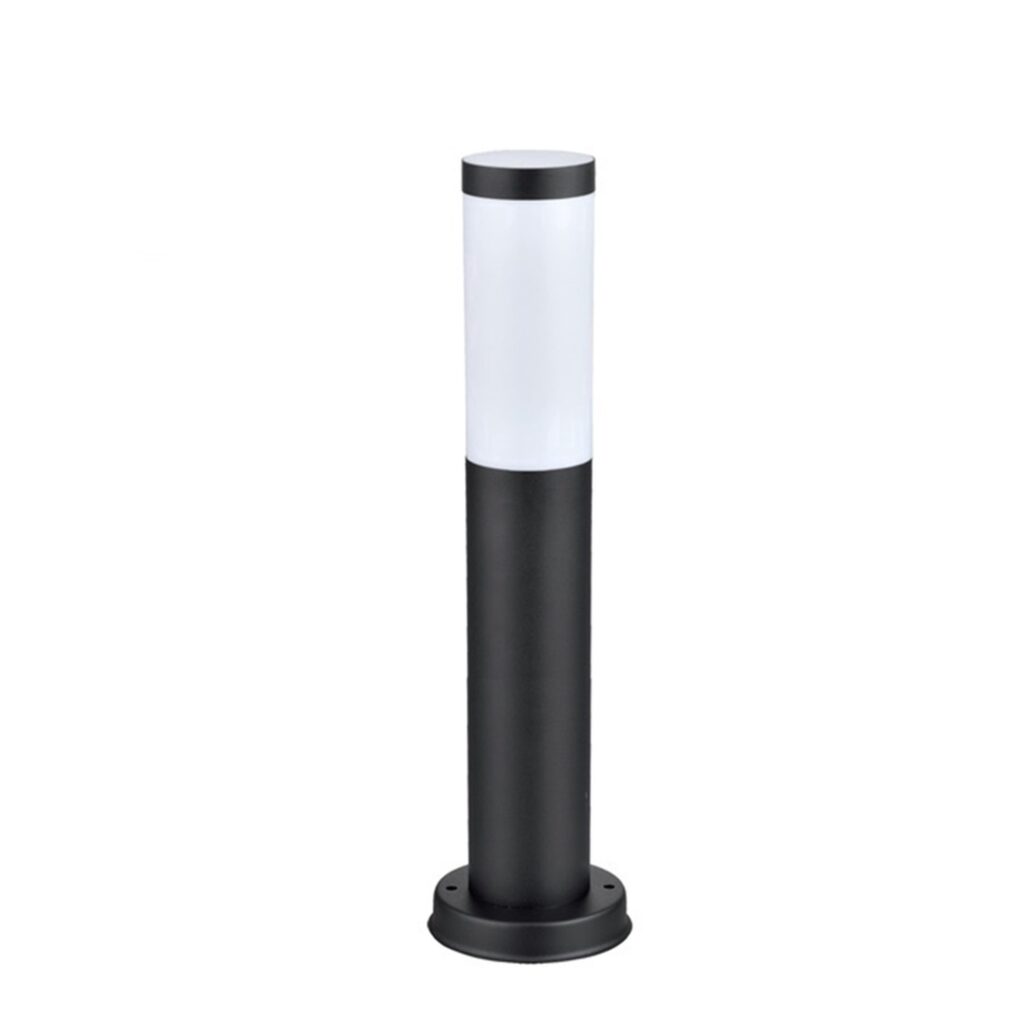

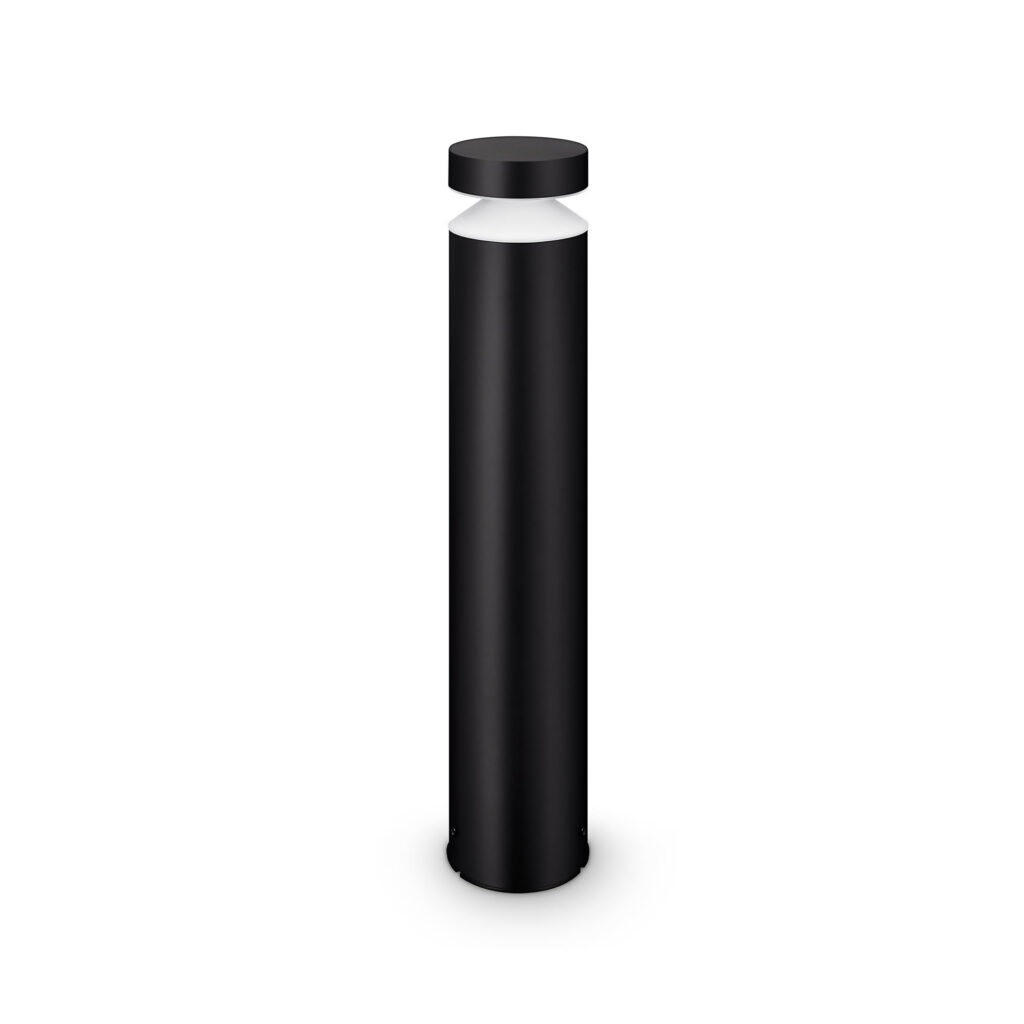

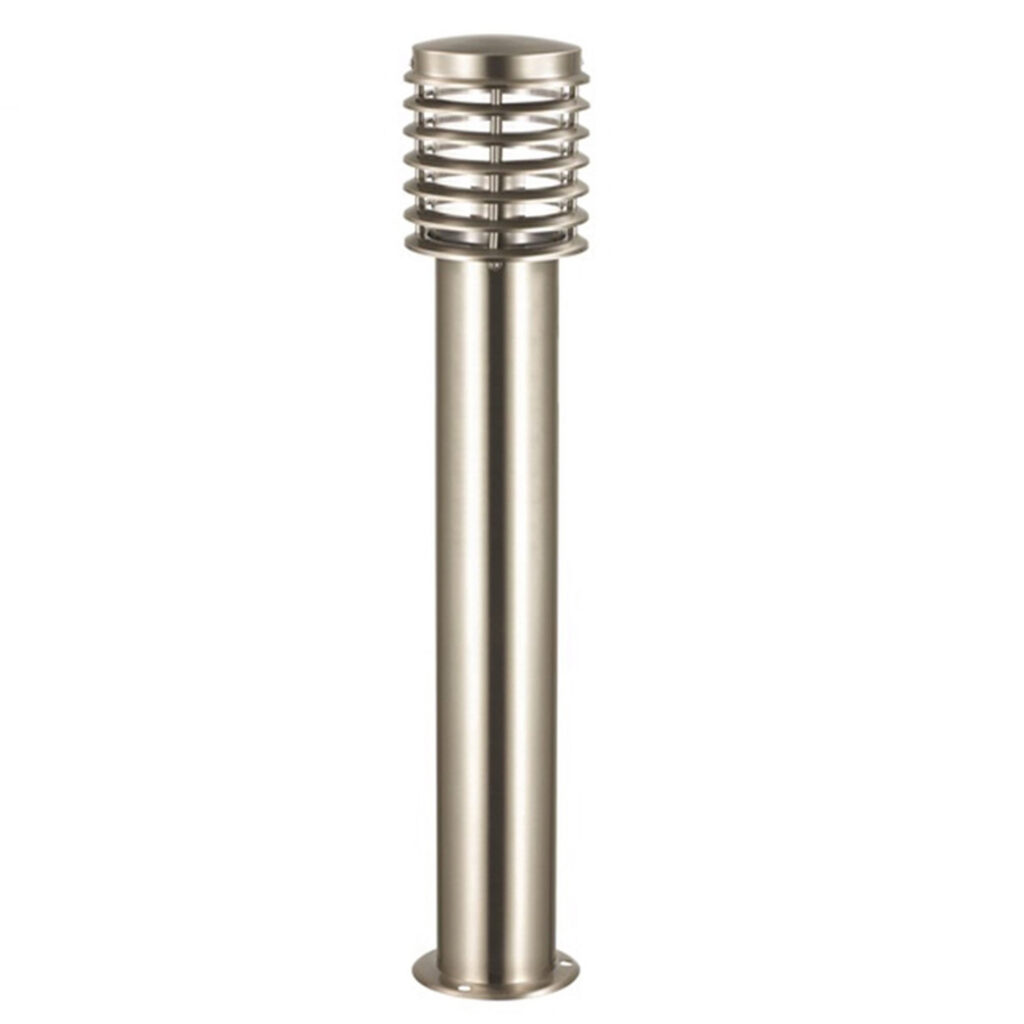

This base is ideally suitable for installing the following luminaires.
Э
Did you not find your luminaire?
Select the appropriate attachment type for the luminaire and check the spacing between the centers of the openings.
If you’re unsure, contact us—we’ll help you choose the suitable solution
